Shore Hardness Tester

 VST / HDT Apparatus
The range of durometers is widely used to test the hardness of soft materials. The instrument can be either hand held or fitted to an optional stand for increased repeatability. The range of Shore Durometers encompasses a number of hardness values.

Features:
• Easy to use with immediate results.
• Standard test for material hardness.
• High repeatability.

Conforms To:
ASTM D 2240, BS 7442-3.2, DIN 53505, FIAT 50411, ISO 868, ISO 7267-2, NF T51-123.

Supply with: Shore Durometer, operating instructions, Check Piece.

Shore Hardness Tester

A round point indents the material under a fixed force spring and the hardness is displayed on the dial in Shore Hardness Units.
Range : 0 to 100 Shore
Resolution : 2 Shore
Indenter : Truncated cone
Model : SHRT – I


Shore Hardness Tester

A round point indents the material under a fixed force spring and the hardness is displayed on the dial in Shore Hardness Units.
Range : 0 to 100 Shore
Resolution : 1 Shore
Indenter : Truncated cone
Model : DSHT – III


Shore Hardness Tester

Shore Durometer A with Max indicator
A round point indents the material under a fixed force spring and the hardness is displayed on the dial in Shore Hardness Units.
Range : 0 to 100 Shore
Resolution : 1 Shore
Indenter : Truncated cone
Model : DSHT – III

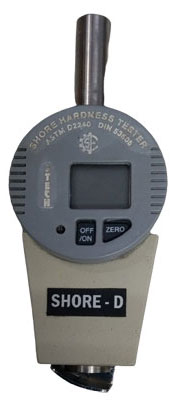

Shore Hardness Tester

A round point indents the material under a fixed force spring and the hardness is displayed on the Digital in Shore Hardness Units.
Range : 0 to 100 Shore
Resolution : 1 Shore
Indenter : Truncated cone
Operating Key : ON/ OFF& Zero./ReSet
Zero setting at any position
Power Supply : 1.5V LR 44 battery
Model : DSHT IV


Shore Hardness Tester

The principle used to measure hardness is based on measuring the resistance force of the penetration of a pin into the test material under a known spring load. The amount of penetration (max. 2.54 mm / 0.1 in.) is converted to hardness reading on a scale with 100 units.
Range : 0 to 100 Shore
Resolution : 1 Shore
Indenter : Truncated cone
Operating Key : ON/ OFF& Zero./ReSet
Zero setting at any position
Power Supply : 1.5V LR 44 battery
Model : DSHT IV


Shore Hardness Tester

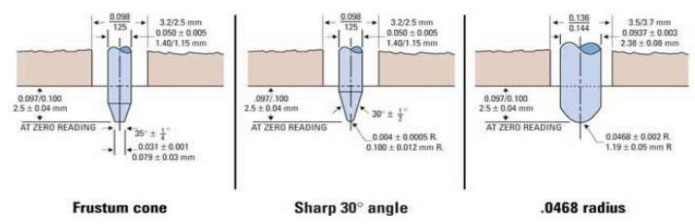

Shore   Application Max. Force Indenter
A For soft, flexible rubber, plastic, PVC, polyester, neoprene, leather, Thiokol, nitril rubbers, tyres, etc. 821 g
Frustum cone
B Same as A scale for high values 821 g Sharp 30 ° Angle
C Same as D scale for low values 4533 g Frustum cone
D Scale for hard and rigid surfaces synthetic materials, acrylics, plexi-glass, printing rolls, cellulose, acetates, densified wood, nylon 4533 g Sharp 30 ° Angle
DO Same as B and C 4533 g 0.0468 radius
O Same as A scale for low values 821 g 0.0468 radius
OO For sponge, natural rubber, silicone 113 g 0.0468 radius

Shore Hardness Tester

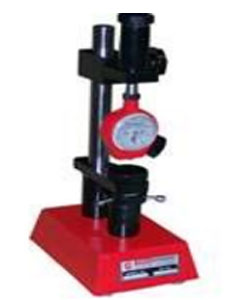

Stand For Durometer
Specially designed Stands are used to improve the accuracy and reproducibility of both analog and digital durometer hardness tester readings by ensuring that the presser foot is exactly parallel to the specimen table. Any analog or digital durometer can be mounted on an applicable operating stand. The operating stand is primarily intended for use on a test specimen with parallel sides. Irregularly shaped objects may be tested in a nest or a fixture to make the given surface parallel to the durometer presser foot. ASTM D 2240 specifies three categories of operating stands: Type 1 are basic, manual operating stands. Type 2 is stands capable of controlling the rate of descent. Type 3 are hydraulically, pneumatically or electromechanical driven. Stands that fall into all three categories. For assistance in selecting the proper operating stand to fit your durometer.
