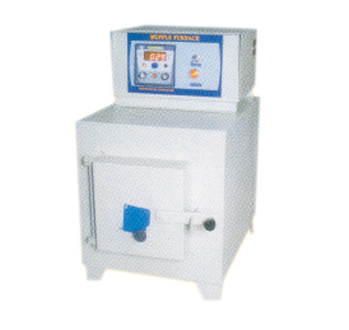

MUFFLE FURNACE

  • It is light weight and fast heating equipment.
  • Most Useful for Ashing, Fasions, Lgniting and heat treating of small parts in chemical, industrial fields, colleges.
  • Out side body made up of heavy gauge M.S / G.I duly powder coated Inner muffle with high temp. insulating material
  • Maximum Temperatures 10000C / 12000C & working temperature 9300C / 11300C
  • Temp. Controlled by Digital Temperature Controller cum Indicator.
  • Heating elements made of kenthal wire would extremely on the muffle.
  • Control panel fitted on top of the units with indicating Lamps & Switches
  • A Uniform heat distribution through all 4 sides with kental wire.
  • A special solid state sliver fuse for protection to elements in case of over heating.
  • Operates on 230 Volts A.C Only.
  • Various Sizes Available.
 MUFFLE FURNACE
Size Rating watts (10000C) Rating watts (12000C)
(9" x 4" x 4") 23 x 10 x 10 Cm. 1500 2000
(10" x 5" x 5") 25 13 X 13 Cm. 2000 2500
(12" x 6" x 6") 30 x 15 x 15 Cm. 3300 3500
(18" x 9" x 9") 45 x 23 x 23 Cm. 6000 7000
